CX5630 | Basic CPU module
CX56xx family
CX5630 | Basic CPU module
CX56xx family
CX5600 Embedded PC series with AMD Ryzen™ processors
CX5000 Embedded PCs

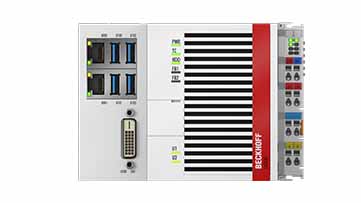

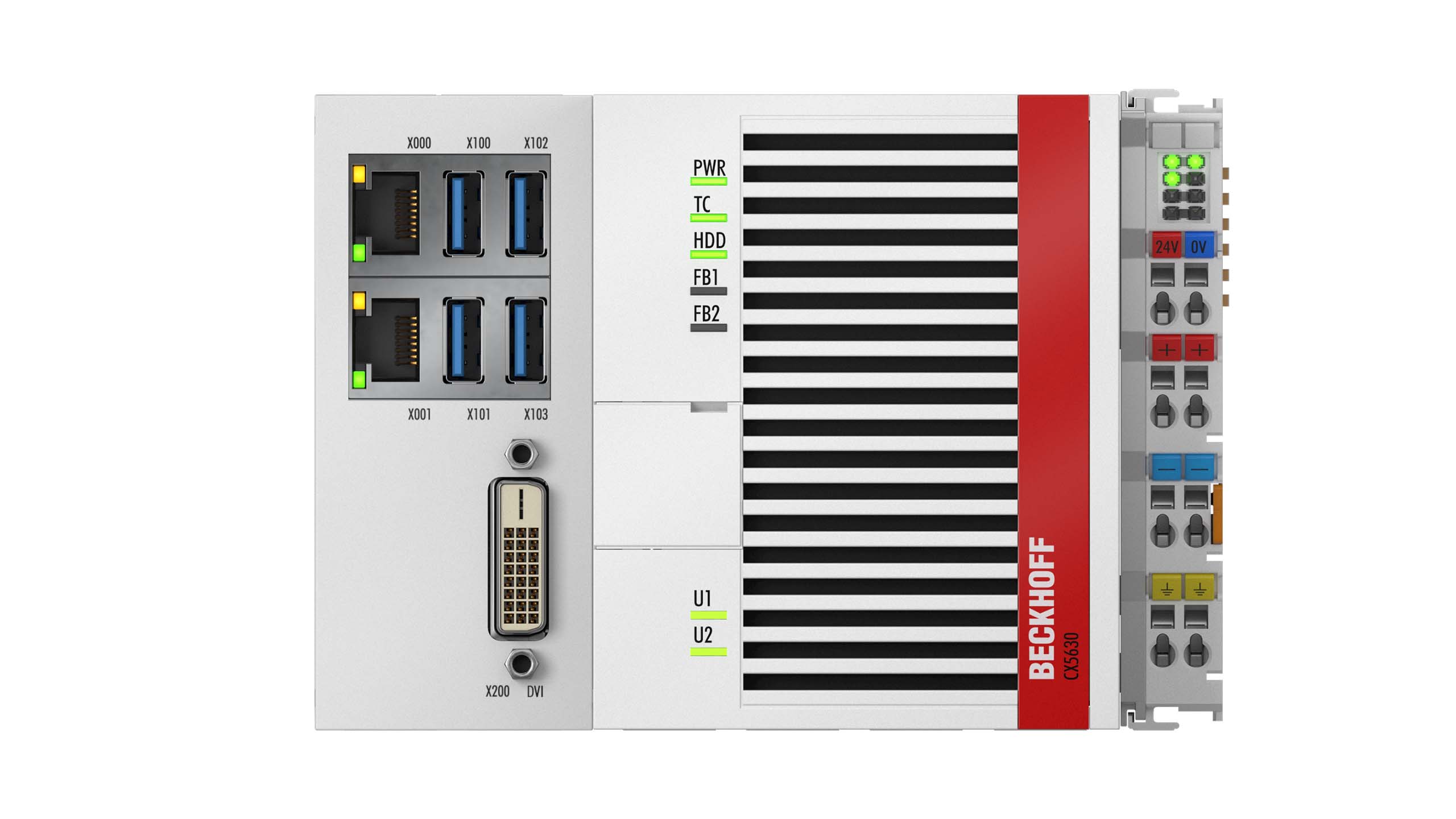

The CX5630 is an Embedded PC based on the AMD Ryzen™ R1505G processor with a clock speed of 2.0 GHz (dual-core) and 8 GB DDR4-RAM. The basic equipment includes two independent, 1.0 Gbit-capable Ethernet interfaces as well as four USB 3.0 and one DVI-D interface. A replaceable, industry-standard M.2 SSD (SATA) is used as the boot and storage medium, enabling even faster read and write access and large-volume data handling. The M.2 SSD is easily accessible behind a flap to enable rapid hardware replacement in case of service, even on site.
A wide range of additional connection options or gateway functions are available thanks to the optional interface and I/O level, which can consist of either E-bus or K-bus terminals and can be fitted ex factory. In addition, a system module or fieldbus module from the CX2000 series can be plugged in via the high-pole connection on the left-hand side of the device. Although the total number of plug-in modules of the type CX2500-xxxx is limited to one with the CX5600 series, it is possible in this way, for example, to implement two further Gbit Ethernet interfaces or four further USB interfaces or a further fieldbus interface. Furthermore, the CX5630 is characterized by an internally electrically isolated power supply unit, built-in 1-second UPS, low power consumption and fanless cooling.
The TwinCAT automation software turns the CX5630 system into a high-performance PLC and motion control system that can be used with or without visualization. Both TwinCAT 2 in 32-bit mode and the latest TwinCAT 3 version in 64-bit mode are supported. Continuing support for TwinCAT 2 guarantees investment protection for projects and systems that were or will be created with this 32-bit generation. The extended operating temperature range from -25°C to +60°C allows use in climatically demanding applications.
Product status:
regular delivery
Product information
| Technical data | CX5630 |
|---|---|
| Processor | AMD Ryzen™ R1505G, 2.0 GHz |
| Number of cores | 2 |
| Flash memory | M.2 SSD (SATA) and microSD card (storage media not included) |
| Main memory | 8 GB DDR4 RAM |
| 1-second UPS | integrated (1 MB on M.2 SSD) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface |
| Cooling | passive |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status, 2 x user LED |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15%/+20%), electrically isolated |
| Max. power consumption | 20 W |
| Max. power consumption (with loading UPS) | 27 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Weight | approx. 960 g |
| Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
| Relative humidity | 95%, no condensation |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protection rating | IP20 |
| Approvals/markings | CE, UL |
| TwinCAT 3 platform level | Performance Plus (50); please see here for an overview of all the TwinCAT 3 platform level |
| Ordering information | |
|---|---|
| CX5630-0100 | CPU module, no operating system, no TwinCAT |
| CX5630-0160 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 32 bit, no TwinCAT |
| CX5630-0161 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 32 bit, TwinCAT 2 PLC runtime |
| CX5630-0162 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 32 bit, TwinCAT 2 NC PTP runtime |
| CX5630-0163 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 32 bit, TwinCAT 2 NC I runtime |
| CX5630-0170 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 64 bit, no TwinCAT |
| CX5630-0175 | CPU module, Microsoft Windows 10 IoT Enterprise 2019 LTSC, 64 bit, TwinCAT 3 runtime (XAR), no licenses included |
| CX5630-0185 | CPU module, TwinCAT/BSD, TwinCAT 3 runtime (XAR), no licenses included |
| CX5630-0190 | CPU module, Microsoft Windows 10 IoT Enterprise 2021 LTSC, 64 bit, no TwinCAT |
| CX5630-0195 | CPU module, Microsoft Windows 10 IoT Enterprise 2021 LTSC, 64 bit, TwinCAT 3 runtime (XAR), no licenses included |
TwinCAT/BSD and Windows 10 IoT Enterprise require a M.2 SSD (SATA).
TwinCAT 3 runtime (XAR) is preinstalled, without licenses. Please order TwinCAT 3 licenses separately from the TwinCAT 3 Price List.
| Optional interfaces | |
|---|---|
| CX5630-N010 | DVI-D interface, additional DVI-D port for clone or extended display mode.
Is not supported by TwinCAT/BSD. |
| CX5630-N011 | DisplayPort interface, additional DisplayPort for clone or extended display mode.
Is not supported by TwinCAT/BSD. |
| CX5630-N020 | audio interface, 3 x 3.5 mm jack sockets, Line In, Mic In, Line Out or 5.1 Surround |
| CX5630-N030 | RS232 interface, D-sub plug, 9-pin (RXD, TXD, RTS, CTS) |
| CX5630-N031 | RS485 interface, D-sub socket, 9-pin, configuration as an end point, without echo, termination on |
| CX5630-N031-0001 | RS485 interface, D-sub socket, 9-pin, configuration as an end point, with echo, termination on |
| CX5630-N031-0002 | RS485 interface, D-sub socket, 9-pin, configuration as drop point, without echo, termination off |
| CX5630-N031-0003 | RS485 interface, D-sub socket, 9-pin, configuration as drop point, with echo, termination off |
| CX5630-N031-0004 | RS422 interface, D-sub socket, 9-pin, configuration as full duplex end point, termination on |
| CX5630-M112 | 2 x EtherCAT master interface |
| CX5630-B110 | EtherCAT slave interface, EtherCAT IN and OUT (2 x RJ45) |
| CX5630-M310 | PROFIBUS master interface, D-sub socket, 9-pin |
| CX5630-B310 | PROFIBUS slave interface, D-sub socket, 9-pin |
| CX5630-M510 | CANopen master interface, D-sub plug, 9-pin |
| CX5630-B510 | CANopen slave interface, D-sub plug, 9-pin |
| CX5630-M930 | PROFINET RT, controller interface, Ethernet (2 x RJ45 switch) |
| CX5630-B930 | PROFINET RT, device interface, Ethernet (2 x RJ45 switched) |
| Accessories | |
|---|---|
| CX1900-0132 | 16 GB microSD card |
| CX2900-0101 | Housing locking clips (black) for the CX52x0, CX53x0, CX56x0 and CX20xx series 10 locking pin sets (each set consisting of two pieces) |
| CX2900-0102 | Cover for left-side module bus connector, 5 pieces |
| CX2900-0108 | logo strips for CX5xxx, transparent for individual labeling, package contents 20 units |
| CX2900-0506 | 40 GB M.2 2242 SSD, 3D flash, extended temperature specification |
| CX2900-0507 | 80 GB M.2 2242 SSD, 3D flash, extended temperature specification |
| CX2900-0508 | 160 GB M.2 2242 SSD, 3D flash, extended temperature specification |
| CX2900-0509 | 320 GB M.2 2242 SSD, 3D flash, extended temperature specification |
