EL8601-8411 | EtherCAT Terminal, 12-channel multi-interface, 8 x DI, 1 x CNT, 4 x DO, 2 x PWM, 1 x AI, 1 x AO, 1 x ENC AB
DI/ENC A/CNT Clk
DI/ENC B/CNT Dir
DI/Latch/Thr, Out/DO
DI/Gate/DO
PWM 1/DO
AI
Error AI
DI1
DI2
DI3
DI4
PWM 2/DO
AO
Error AO
+24 V
EL8601-8411 | EtherCAT Terminal, 12-channel multi-interface, 8 x DI, 1 x CNT, 4 x DO, 2 x PWM, 1 x AI, 1 x AO, 1 x ENC AB
EL8601-8411 | EtherCAT Terminal, 12-channel multi-interface, 8 x DI, 1 x CNT, 4 x DO, 2 x PWM, 1 x AI, 1 x AO, 1 x ENC AB
EL8601-8411 | EtherCAT Terminal, 12-channel multi-interface, 8 x DI, 1 x CNT, 4 x DO, 2 x PWM, 1 x AI, 1 x AO, 1 x ENC AB
EtherCAT box EP8601-002: One box - many options
EL8601-8411: Up to twelve signal interfaces and nine signal types
EL8601 multi-I/O interface: Product news from SPS 2022

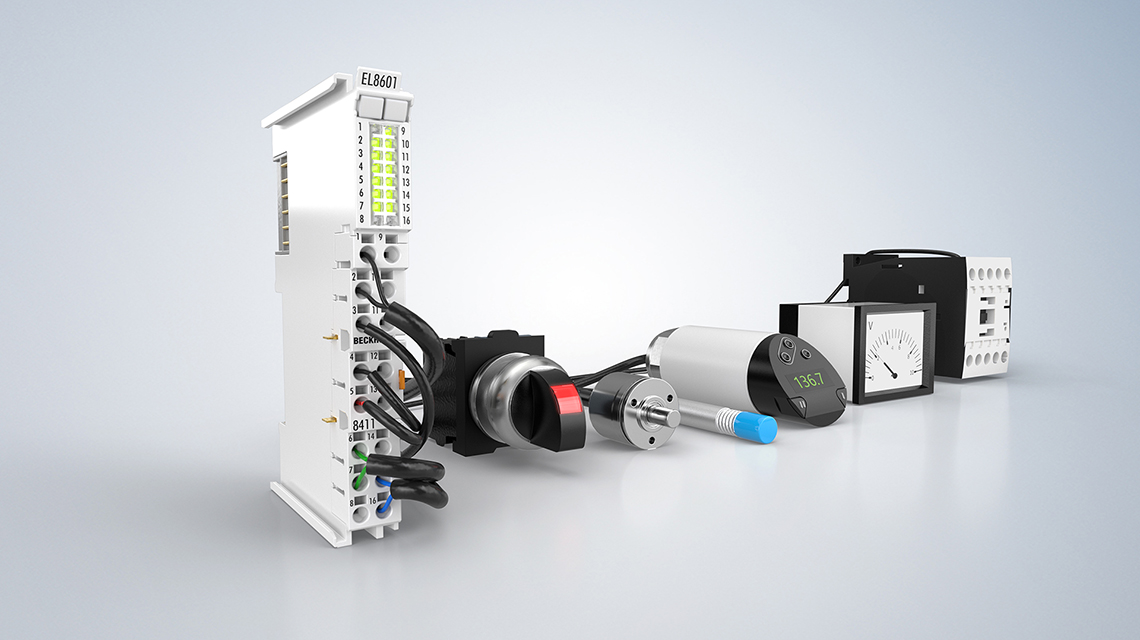

The EL8601-8411 EtherCAT Terminal offers a combination of up to twelve signal interfaces (8 x DI, 2 x DO, 1 x AI, 1 x AO) and up to nine different signal types in an installation space of just 12 mm. In addition to the digital inputs and outputs, one analog input and output each can be configured as a current or voltage signal. The digital inputs with configurable filter times can also be used for 24 V HTL encoders with A and B track including latch and gate function, or as an up/down counter with a counting frequency of up to 100 kHz. Two of the digital outputs can be used as a PWM signal that can be modulated in both pulse width and frequency in the range of 20 Hz to 25 kHz.
The EL8601-8411 is an ideal complement to the CX7000 Embedded PC due to the large number of configurable combination options. It offers a compact solution for applications where only a few complex signals are required.
Due to the predefined number of terminal points, not all signals can be used simultaneously. For each signal range, the parameterization can be conveniently defined via TwinCAT using the "modules/slots" method.
Special features:
- various configurations of digital and analog inputs and outputs
- analog inputs and outputs for current or voltage
- encoder, counter and PWM output configurable
Product status:
regular delivery
Product information
| Technical data | EL8601-8411 |
|---|---|
| Number of inputs | 4 digital inputs (24 V DC), 4 multi-functional digital inputs (24 V DC, counter, encoder), 1 multi-functional analog input (±10 V, ±20mA, 12 bit) |
| Number of outputs | 2 multi-functional digital outputs (24 V DC, 0.5 A, PWM), 1 multi-functional analog output (±10 V, 0…20 mA, 12 bit) |
| Distributed clocks | no |
| Current consumption E-bus | typ. 100 mA |
| Current consumption power contacts | typ. 40 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Weight | approx. 65 g |
| Operating/storage temperature | 0…+55°C/-25…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable (see documentation) |
| Approvals/markings | CE |
| Signal range | Options |
|---|---|
| Digital input | 4 x digital input, 24 V DC, configurable filter |
| Multi-functional digital input | 4 x digital input, 24 V DC, configurable filter or
2 x digital input, 24 V DC, configurable filter and 2 x digital output, 24 V DC, 0.5 A or 1 x up/down counter, 24 V DC, 100 kHz, threshold output or 1 x encoder 24 V DC HTL, 100 kHz, latch, gate |
| Multi-functional digital output | 2 x digital output, 24 V DC, 0.5 A or 2 x PWM, 24 V DC, 0.5 A |
| Multi-functional analog input | 1 x analog input, voltage ±10 V, 12 bit or 1 x analog input, current, ±20 mA, 12 bit |
| Multi-functional analog output | 1 x analog output, voltage, ±10 V, 12 bit or 1 x analog output, current, 0…20 mA, 12 bit |
| Technical data | Multi-function | Digital input |
|---|---|
| Connection technology | 1-wire |
| Specification | EN 61131-2, type 3, positive switching |
| Number of inputs | max. 8 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| “0” signal voltage | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage | 11…30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 1/3) |
| Input filter | configurable (1 µs, 0.1 ms, 0.5 ms, 1 ms, 3 ms, 10 ms, 20 ms) |
| Technical data | Multi-function | Counter |
|---|---|
| Connection technology | 1 x up/down counter |
| Specification | EN 61131-2, type 3, “0”: < 5 V DC, “1”: > 11 V DC, typ. 3 mA |
| Number of counters | max. 1 |
| Counting frequency | max. 100 kHz |
| Counter depth | 32 bit |
| Special features | Set counter, lock, switch output |
| Technical data | Multi-function | Encoder |
|---|---|
| Technology | incremental encoder interface, HTL 24 V DC |
| Number of channels | max. 1 |
| Encoder connection | 1 x A, B: 24 V DC, single-ended connection, EN 61131-2, type 3, “0”: < 5 V DC, “1”: > 11 V DC, typ. 3 mA |
| Additional inputs | latch/gate input, 24 V DC |
| Counter | 32 bit |
| Limit frequency | 400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz |
| Quadrature decoder | 4-fold evaluation |
| Special features | Set counter, lock, save, switch output |
| Technical data | Multi-function | Digital output |
|---|---|
| Connection technology | 1-wire |
| Number of outputs | max. 4 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | typ. < 2 A |
| Reverse voltage protection | yes |
| Breaking energy | < 150 mJ/channel |
| Switching times | typ. TON: 300 µs, typ. TOFF: 300 µs |
| Technical data | Multi-function | PWM |
|---|---|
| Connection technology | PWM output, push-pull outputs |
| Number of outputs | max. 2 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | typ. < 2 A |
| Base frequency | 20 Hz…25 kHz |
| Duty factor | 0…100% (TON > 750 ns, TOFF > 500 ns) |
| Resolution | 16 bit |
| Technical data | Multi-function | Analog input |
|---|---|
| Number of inputs | 1 |
| Connection method | U single-ended, I single-ended |
| Conversion time | ~ 500 µs |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Ground reference (input) | single-ended |
| Internal resistance | voltage input: > 200 kΩ
current input: 33 Ω typ. |
| Measuring range, nominal | -10/0…+10 V | -20/0/+4…+20 mA |
| Measuring range, technical | -10.73…+10.73 V | -21.47…+21.47 mA |
| Measurement error/uncertainty | < ±0.5% (relative to full scale value) |
| Input filter limit frequency | 1 kHz |
| Dielectric strength | max. 30 V (voltage and current measurement) |
| Special features | U/I parameterizable, ExtendedRange, FIR/IIR filter activatable |
| Technical data | Multi-function | Analog output |
|---|---|
| Number of outputs | 1 |
| Connection method | U single-ended, I single-ended |
| Conversion time | ~ 500 µs |
| Resolution | 12 bit (16 bit presentation incl. sign) |
| Measuring range, nominal | -10/0…+10 V | 0/+4…+20 mA |
| Measuring range, technical | -10.73…+10.73 V | 0…+21.47 mA |
| Measurement error/uncertainty | < ±0.5% (relative to the final output value) |
| Load | voltage output: > 5 kΩ (short-circuit-proof) current output: < 350 Ω (short-circuit-proof) |
| Special features | U/I parameterizable, ExtendedRange |
| Housing data | EL-12-16pin |
|---|---|
| Design form | HD (High Density) housing with signal LEDs |
| Material | polycarbonate |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxx series |
| Wiring | solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver |
| Connection cross-section | s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² |
| Connection cross-section AWG | s*: AWG28…16, st*: AWG22…16, f*: AWG26…19 |
| Stripping length | 8…9 mm |
| Current load power contacts | Imax: 10 A |
*s: solid wire; st: stranded wire; f: with ferrule
