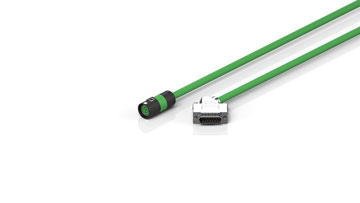

ZK4510-8110-xxxx | Encoder connection cable with itec® plug, drag-chain suitable
ZK4510-8110-xxxx | Encoder connection cable with itec® plug, drag-chain suitable

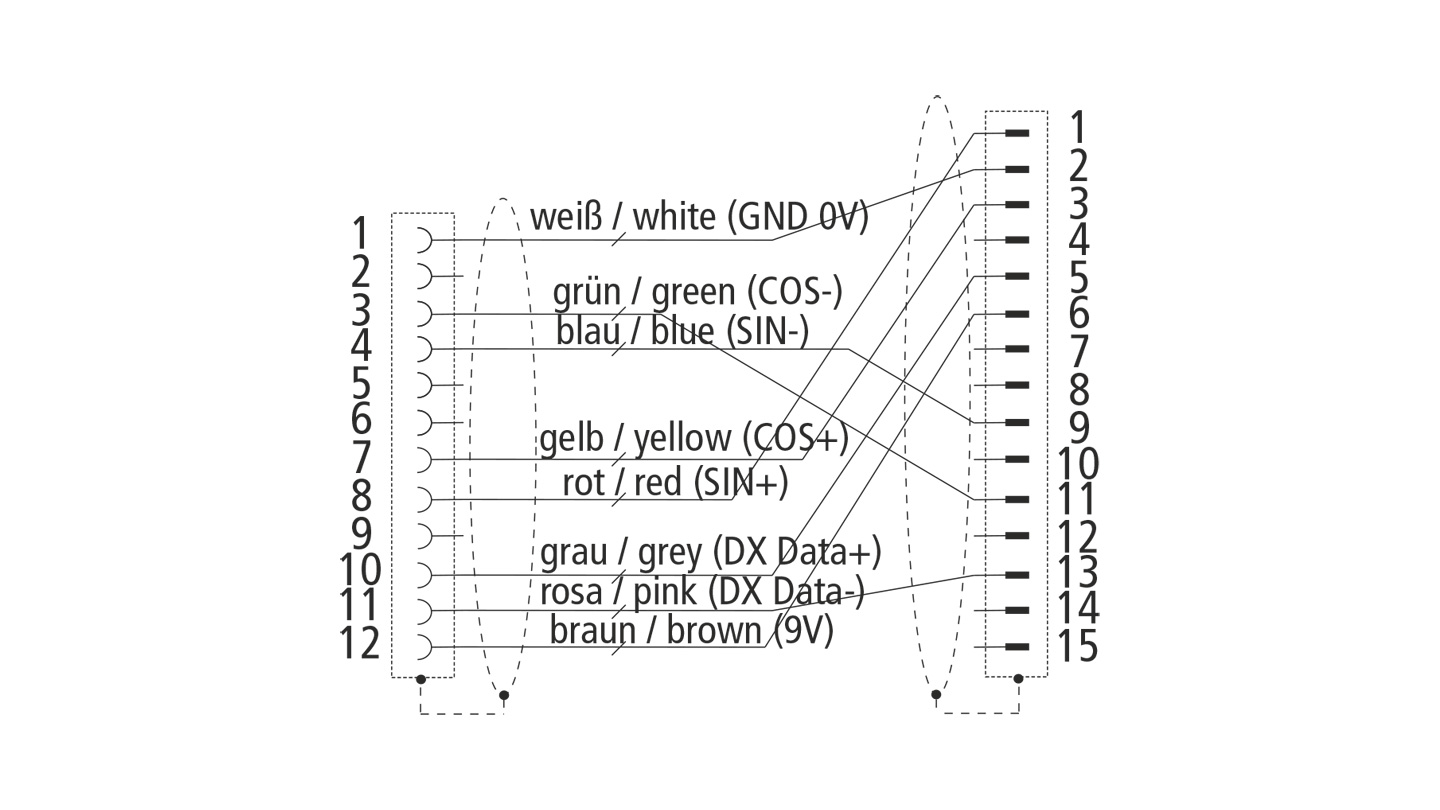

Contact assembly
flexible, drag-chain suitable cable with 5 mio. bending cycles, max. 120 m/min, max. 4 m/s²,
min. bending radius = 75 mm (10 x OD), max. drag-chain length horizontal 20 m, vertical 5 m,
(4 x 2 x 0.25 mm²)
The cable is UL and CSA listed.
suitable for:
- AX5000
Product status:
regular delivery
Product information
| Technical data | Head A |
|---|---|
| Installation size | itec® (Series 615) |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | 12-pin |
| Mating cycles | 500 |
| Wire termination | crimp connection |
| Technical data | Head B |
|---|---|
| Installation size | D-sub |
| Connector type | socket |
| Contact type | male |
| Number of positions (face) | 15-pin |
| Wire termination | solder connection |
| Technical data | Cable by meter |
|---|---|
| Operating voltage | max. 300 V AC (UL), Uo/U 300/300 V (VDE) |
| Cross-section | 4 x 2 x 0.25 mm² |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 7.5 mm ± 0.3 mm (0.2952" ± 0.0118") |
| Min. bending radius, fixed installation | 8 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | green |
For further technical details, please refer to the data sheet.
| A1 | 44.00 mm |
| A2 | 19.00 mm |
| B1 | 40.00 mm |
| B2 | 41.00 mm |
| Ordering information | Length |
|---|---|
| ZK4510-8110-xxxx | xxxx = cable length in decimeters |
| xxxx = 0050 | example for 5 m length |
| sold by the meter, admissible total cable length see documentation of Servo Drive |
